Reliable, easy-to-read flow monitoring for commercial pools, aquatic facilities, spas, and water features.

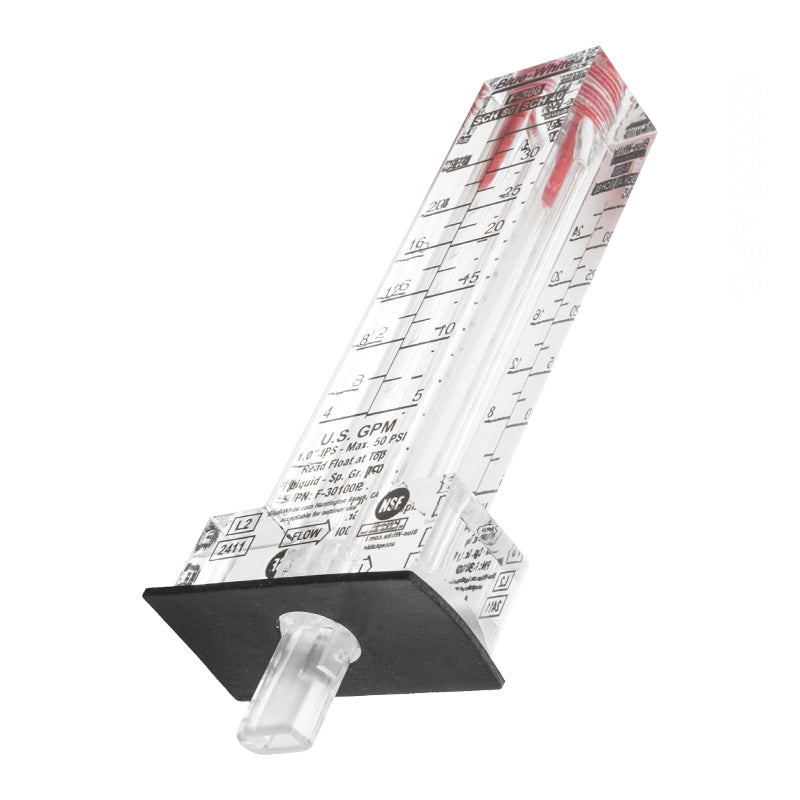

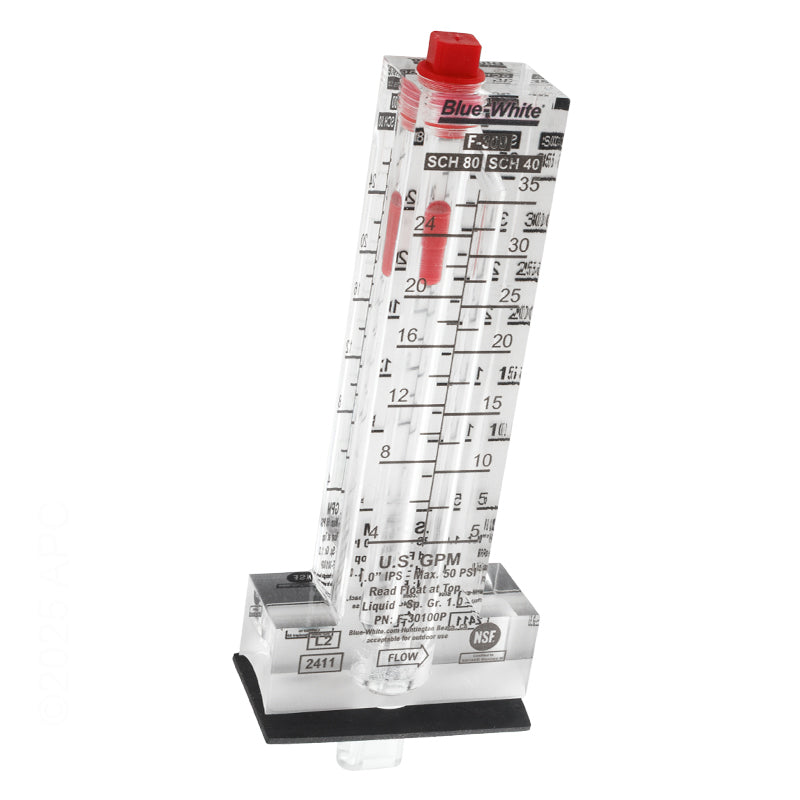

The Blue-White F-300 Series is designed for commercial aquatic systems where maintenance teams need a simple, dependable way to verify circulation flow. Installed directly on existing horizontal piping, the F-300 provides an at-a-glance GPM reading without adding a bulky inline meter to the plumbing system.
Available for 1" through 8" Schedule 40 and Schedule 80 pipe, making it suitable for everything from smaller commercial spa systems to high-flow pool and aquatic facility circulation systems.
Built for Commercial Pool Operations
Maintaining proper circulation is critical to filtration, water quality, and overall system performance. The F-300 gives operators and maintenance personnel a convenient visual indication of actual water flow through the circulation system.
Ideal for:
- Hotels and resorts
- Apartment and condominium pools
- YMCA and community pools
- Schools and universities
- Country clubs
- Municipal aquatic facilities
- Fitness and recreation centers
- Waterparks and splash facilities
- Commercial spas
- Pool service and maintenance companies
Why Maintenance Teams Use the F-300
Quick visual flow verification
The easy-to-read scale lets maintenance personnel check circulation performance during routine equipment-room inspections.
Designed for commercial aquatics
Horizontal F-300 models are NSF/ANSI 50 listed for swimming pools, spas, hot tubs, and other recreational water facilities.
Installs on existing piping
The pitot-tube design mounts directly onto the pipe, making it especially useful for existing equipment rooms where replacing plumbing with a full inline meter would be inconvenient.
Schedule 40 & Schedule 80 scales
The meter provides dedicated scales for both common pipe schedules, helping eliminate guesswork when reading system flow.
Works in tight equipment rooms
The F-300 requires relatively little installation space compared with many traditional inline flow meters.
Outdoor capable
The meter is suitable for outdoor installations, including equipment pads exposed to direct sunlight.
Choose the Correct Size
Important: Select the flow meter based on the actual pipe size where the meter will be installed.
| Pipe Size | Schedule 40 Flow Range | Schedule 80 Flow Range |
|---|---|---|
| 1" | 5–35 GPM | 4–26 GPM |
| 1-1/4" | 9–50 GPM | 8–40 GPM |
| 1-1/2" | 10–70 GPM | 10–60 GPM |
| 2" | 20–120 GPM | 18–100 GPM |
| 2-1/2" | 29–150 GPM | 25–130 GPM |
| 3" | 45–240 GPM | 40–215 GPM |
| 4" | 75–420 GPM | 70–375 GPM |
| 6" | 170–1,100 GPM | 160–1,000 GPM |
| 8" | 300–2,200 GPM | 275–1,950 GPM |
Not Sure Which Size You Need?
Check the diameter or size markings on the circulation pipe where the meter will be installed. The F-300 horizontal models are calibrated for the specified pipe diameter and Schedule 40/80 dimensions.
Replacing an existing Blue-White meter?
Match the existing model number or pipe size whenever possible.
Need help identifying the correct model? Contact our commercial pool team before ordering.
Installation Requirements
The F-300 horizontal model installs at the 12 o'clock position on horizontal piping.
For best accuracy:
- Install on a straight section of pipe
- Provide approximately 5 pipe diameters of straight pipe upstream
- Provide approximately 2 pipe diameters downstream
- Keep the pipe completely full of water during operation
- Install downstream of the filter when practical
- Install the meter in the correct direction of flow
- Use on the pipe size and schedule for which the meter is calibrated
Installation requires drilling a 5/8" opening in the pipe. The supplied gasket and stainless-steel clamps secure the meter to the piping.
Commercial-Grade Construction
- One-piece machined acrylic meter body
- Chemical-resistant PVDF float
- Neoprene gasket
- 316 stainless-steel pipe clamps
- Dual Schedule 40 / Schedule 80 scale
- Suitable for outdoor installation
- NSF/ANSI 50 listed horizontal models
- Designed for relatively clean water applications
Technical Specifications
| Application | Commercial aquatic water circulation |
| Installation | Horizontal pipe |
| Pipe Sizes | 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 6", and 8" |
| Pipe | IPS Schedule 40 or Schedule 80 |
| Measurement | GPM |
| Body Material | Machined acrylic |
| Float | PVDF |
| Clamps | 316 stainless steel |
| Maximum Fluid Temperature | 190°F at 0 PSI |
| Accuracy | ±5% of full scale for 1"–2" models; ±10% of full scale for 2-1/2"–8" models |
| Agency Listing | NSF/ANSI 50 |
| Manufacturer | Blue-White Industries |
What's Included

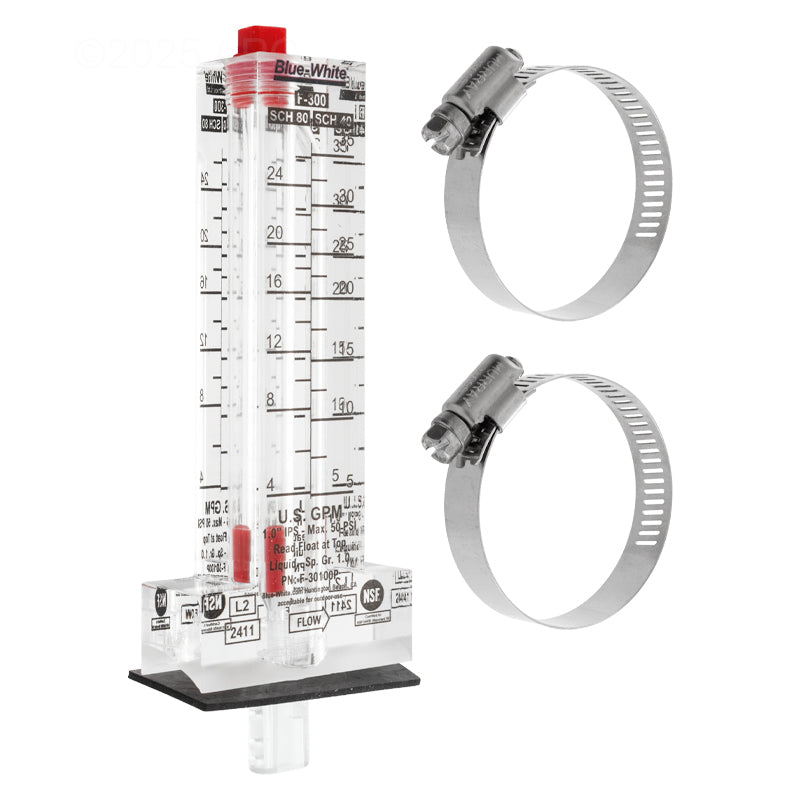

- Blue-White F-300 flow meter
- Rubber gasket
- Two stainless-steel mounting clamps
- Installation instructions
Common Questions
Why does a commercial pool need a flow meter?
A flow meter allows operators and maintenance personnel to verify the amount of water moving through the circulation system. It provides a quick way to monitor circulation performance and identify changes that may indicate filtration, pump, or hydraulic issues.
Can this replace an existing F-300?
Yes, provided you select the correct model for the pipe size and installation configuration. When replacing an existing unit, matching the existing Blue-White model number is the safest approach.
Can I install it on vertical pipe?
This F-300 configuration is intended for horizontal installation. Blue-White offers separate models for supported vertical up-flow and down-flow applications.
Does pipe schedule matter?
Yes. The meter has separate Schedule 40 and Schedule 80 scales because the inside diameter of the pipe affects the relationship between water velocity and flow rate.
Can this be installed outdoors?
Yes. The F-300 is suitable for outdoor installation, including commercial equipment pads.
Is this suitable for commercial swimming pools?
Yes. The F-300 is designed for commercial aquatic applications, and the horizontal F-300 models are NSF/ANSI 50 listed.
What if I'm not sure which model I need?
Send us the existing flow-meter model number, pipe size, pipe schedule, and a photo of the installation. Our commercial pool team can help identify the appropriate replacement.
