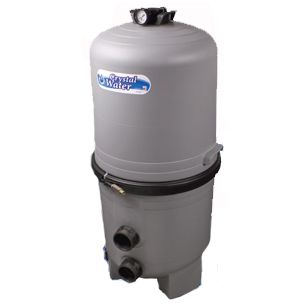

Waterway Crystal Water DE Pool Filters

Waterway Crystal Water DE Pool Filters

Designed for today’s most demanding installations, the Crystal Water D.E. Filter sets a new standard of performance and features for pool filters.

The only D.E. filter on the market with 2 1/2″ internal piping, improves flow and reduces system noise when using 2 1/2″, 2″ or 1 1/2″ plumbing. From the lid with the “Multi-Handle” design to the 2″ bottom clean out port, the Crystal Water D.E. Filter will provide years of trouble-free operation and crystal clear, sparkling water.

Features

  • NSF Listed
  • 2 ½” internal piping
  • 2 ½” Valve Bulkhead Unions (includes 2″ and 1 ½” reducers)
  • Fiberglass reinforced polypropylene body for superior strength
  • “Multi-Handle” design
  • Heavy-duty tamper-proof clamp
  • Industry-proven D.E. grids
  • “Start-Service” dial on stainless steel pressure gauge
  • 1 ½” bottom clean-out port
  • 2 ½” hi-temp PVC slide valve available
  • 2 ½” x 2″ Multi-Port Valves – available in Slip or FPT
  • Convertible to cartridge by simply changing internals
PART NO. SIZE FLOW RATE POOL TURNOVER (6 HRS.) POOL TURNOVER (8 HRS.)
570-0036-07 36 sq. ft. 72 GPM 25,920 34,560
570-0048-07 48 sq. ft. 96 GPM 34,560 46,080
570-0060-07 60 sq. ft. 120 GPM 43,200 57,600
