Description

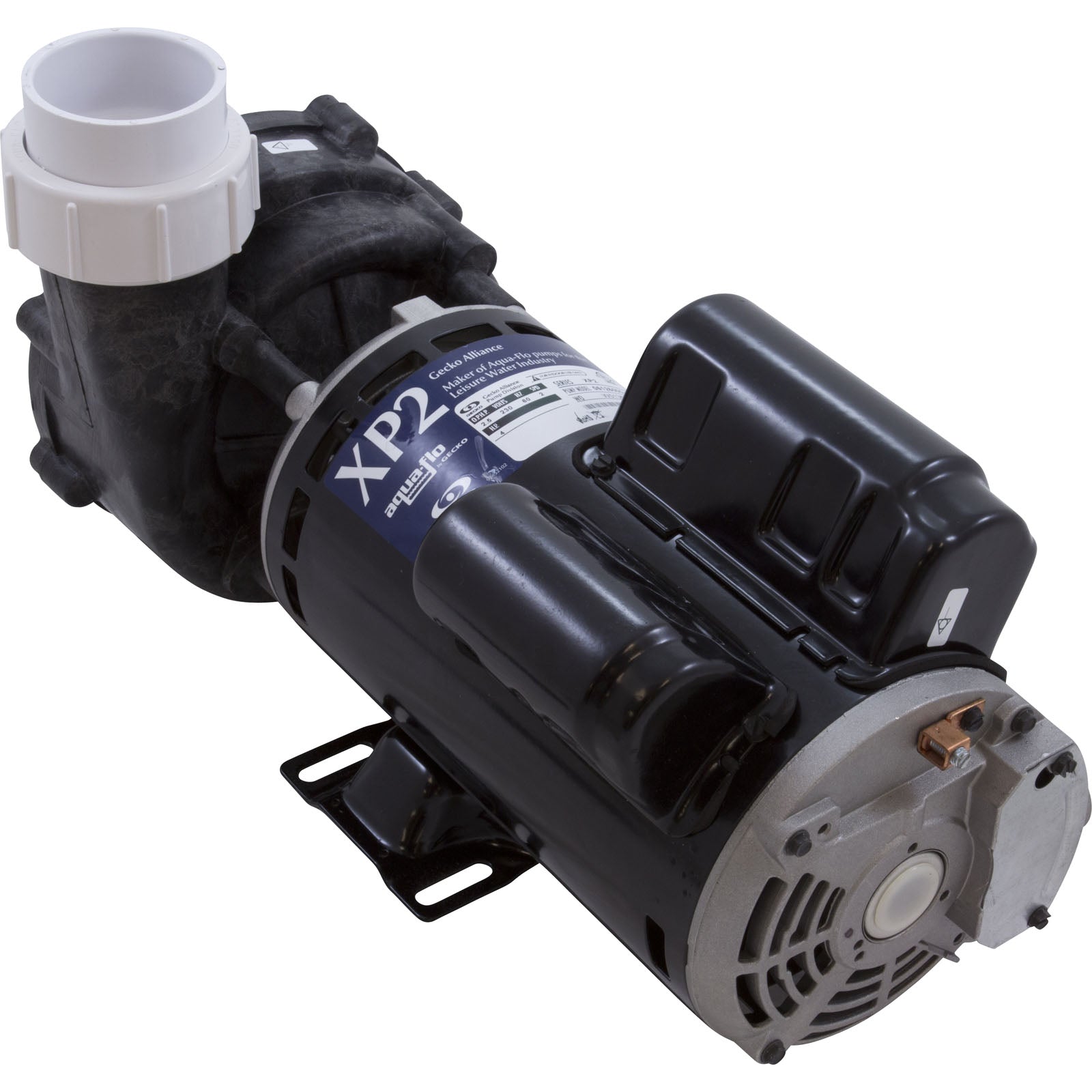

Aqua-Flo by Gecko's original offering in this high performance spa line, the "XP2", offers high performance while utilizing the same space requirements as most other applications. Having a shut-off head of more than traditional 48 frame spa pumps, but less than 56 frame pool pumps, these unique pumps have been designed for today's large, heavily jetted spas requiring increased flow.
Spa Pump Features:
- Fine tuned impeller that moves water through the system with maximum performance
- 2" suction and discharge
- 48 and 56 frame versions
- Thermally protected to extend life expectancy of motor
- Multiple drain locations
- Continuous rated horsepower of 1.5hp, 2.0hp, 2.5hp and 3.0hp (SEE THE AVAILABLE STYLES TAB)
Note: Due to a design change in the current XP2/XP2e pump wet ends, face plate or volute replacement is not suggested. Instead, replace the wet end to avoid issues with how it fits.
- California Title 20 Compliant
| Motor Voltage | 230v |
| Speed | 2 Speed (2-Spd) |
| Motor Amperage/Wattage | 10.7A/3.2A |
| Horsepower | 2.5hp |
| Manufacturer | AquaFlo/Gecko |
| Pump Model | XP2 |
| Suction Pipe Size | 2" |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Style | Center |
| Discharge Pipe Size | 2" |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Style | Side |
| Motor Frame | 48 Frame Thru-Bolt |
| Drain Plug Location | 4,6,9 o`clock |
